FEATURE
Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
Support EPON/GPON mode and switch mode automatically
– Support IPv4 and IPv6 Dual mode
ㆍIntegrated OMCI and TR069 remote configuration and maintenance function
– Support transceiver diagnostic monitoring, transmitter disable, etc.
– Support rich QinQ VLAN function and IGMP snooping /proxy multicast feature
– Fully compatibility with OLT based on Broadcom/MTK/huawei/ZTE/realtek chipset
– For small and medium-sized operators, VolP services are customized
– Support IEEE802.11n 2.4G WIFI 2’2 MIMO WAN
– support IGMP Snooping/Proxy multicast feature
– Support TR069 remote configuration and maintenance

OVERVIEW

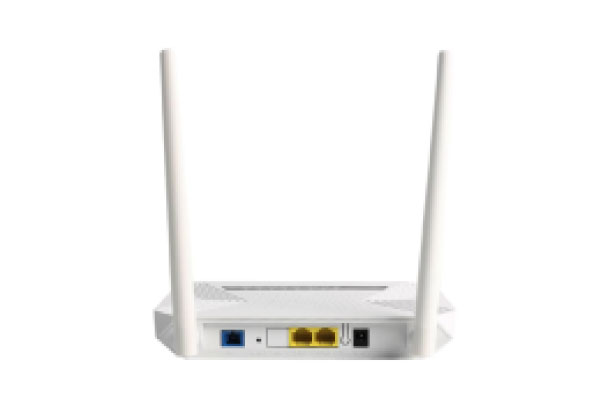

FO-412WX is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application
provides different services access.
FO-412WX is based on mature and stable, cost-effective XPON technology.
FO-412WX adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to
meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984. X
