LAN SYSTEM PRODUCTS
UTP CAT6, FTP, Keystone Jack Toolless Type
UTP CAT6, FTP, Keystone Jack Toolless Type
![UTP-CAT6,-FTP,-Keystone-Jack-Toolless](https://www.focomm-cabling.com/wp-content/uploads/2022/10/UTP-CAT6-FTP-Keystone-Jack-Toolless.jpg)

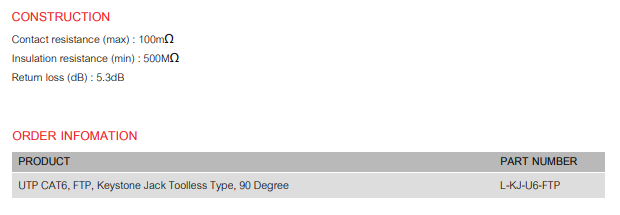

ORDER INFOMATION
DESCRIPTION
This series keystone jacks work together with high speed cables,
cords and panels to provide performance beyond proposed Category 6 standards,
a new feature of this series jack is a universal colored wiring label that eliminates
the need for separate codes for T568A/B wiring scheme.
APPLICATION
– Available in Cat6, T568A/B wirng, meet or exceed TIA/EIA Cat6 requirements
– Overall zinc alloy shielding design meets the industry standards
– Compact jack design, 8 positions and 8 conductors
– Contact : phosphor bronze , phosphor bronze with 6 to 50u* gold plate
– Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
– Easy to be terminated, low attenuation loss and high return loss
– High reliability and superior performance
– Availlable in different colors
