LAN SYSTEM PRODUCTS

Tooless Modular Plug, CAT6, FTP

Tooless Modular Plug, CAT6, FTP

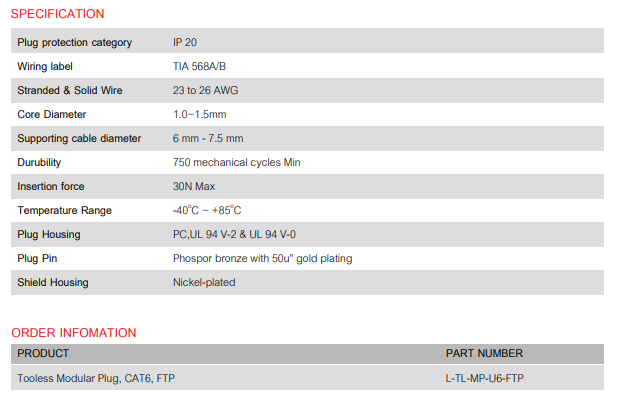

ORDER INFOMATION

DESCRIPTION
The Cat6 shielded field terminated R.J45 plug for
time-saving and efficent on-site assembly for all networks, form
Voice right through to 1000Mbps Ethernet. It can be assembled
on all standaer types od cable, quickly and with no requirement
of special tools. Ideal for use in Modular Plug Terminated Link (MPTL)
used in wireless access point and IP xamera installations.
FEATURES
Toolless & Easy Installation
– Nocrimping tools are required for assembly, perfectly designed for
fast installation. Nut-Type strain relisf boot is convenient to install and
disassemble, saving your time.
Full Metal Jacket
– Robust zinc alloy housing provides superior shielding and mitigates
alien crosstalk, increases shielding and integrity.
Highly Compatible
– Support 23AWG to 26AWG solid or stranded with outside diameters
between 6.0mm and 7.5mm. OD:1.5mm load bar perfectly fit
1.0mm-1.5mm inner wires.
Quality Assurance
– High performance 50u gold-plated pins for low signal losses and
stable signal transmission, improving thequality of the transmission
perform
