MEDIA CONVERTER
Media converter rackmount chasis, 18 Slot ,12V,1.5U height
Media converter rackmount chasis, 18 Slot ,12V,1.5U height

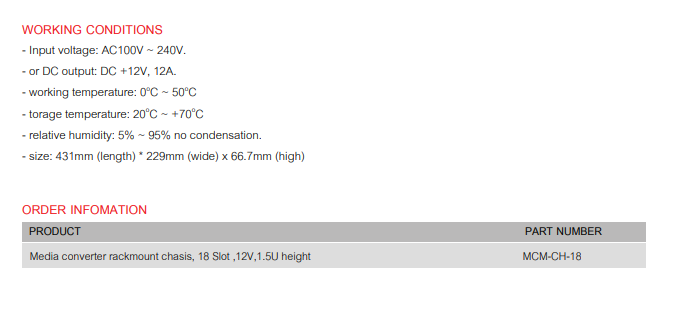

ORDER INFOMATION
FEATURE
– Trays qty: 18.
– The power supply output ripple and noise is less than 50mV.
– Power supply: can choose single or dual supply.
– Good heat dissipation design, to ensure the normal
operation of equipment.
– Application of WTB series transceiver (10M, 100M,
1000M, 10/100/1000M adaptive)
– Power supply for the full screen, the normal operation
of electromagnetic interference from power
PRODUCT DESCRIPTION
Power tray is a highly integrated fiber to Ethernet converting equipment.It supplies power for 18 media converters
simultaneously in one chassis.It support hot-plugging ( to add or remove devices at run time). The two power supply with double
power source,which reduce the power load and prolongs the lifespan. It has the superior characteristic with steady operating,
large power capacity,easy handling and reparation.
Applied to centralized intelligent management of optical fiber network for Telecom, CATV Fiber Optic Ethernet data
centralized network management requirements applicable to power network securty system for high performance guarantee
greater fluctuation range in centralized management and centralized control room.
