OVERVIEW

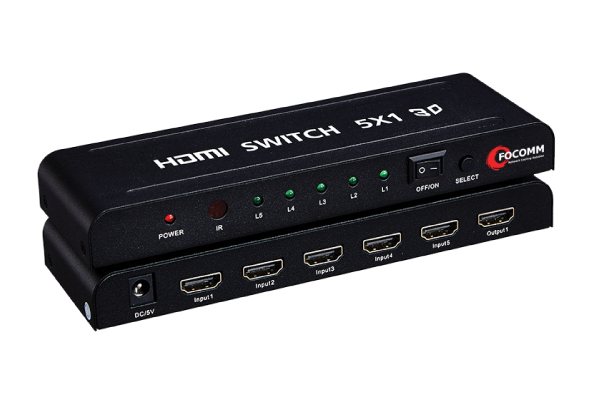

The 5×1 HDMI switch allows 5 HDMI ports to be switched to a
single display terminal via remote control or buttons on unit. The switcher
can be also placed at the end of a long HDMI cable to regenerate the
HDMI signal. This HDMI Switch support video formats including
720p, 1080i , 1080p

FEATURE
– Support 2.5Gbps data rate for tmds clock up to 250MHz
– Support HDMI1.4a
– Support 3D
– Supports highest video resolution 1080p/60Hz
– Support 36 bit deep color
– Support input up to 15 metres AWG26 HDMI standard cable length, output up to 25metres
AWG26 cable length

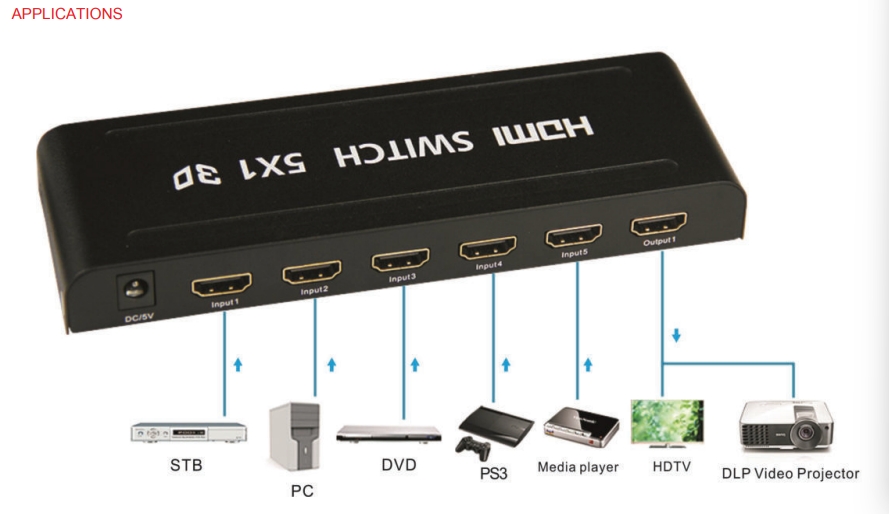

– Supports single high definition display for multiple sources, such as DVD Players
and Satellite Receivers, Digital Projectors, AV Receivers, Set Top Boxes
– Remote Control for operational flexibility and easy to control
– Need DC5V/1A power supply
