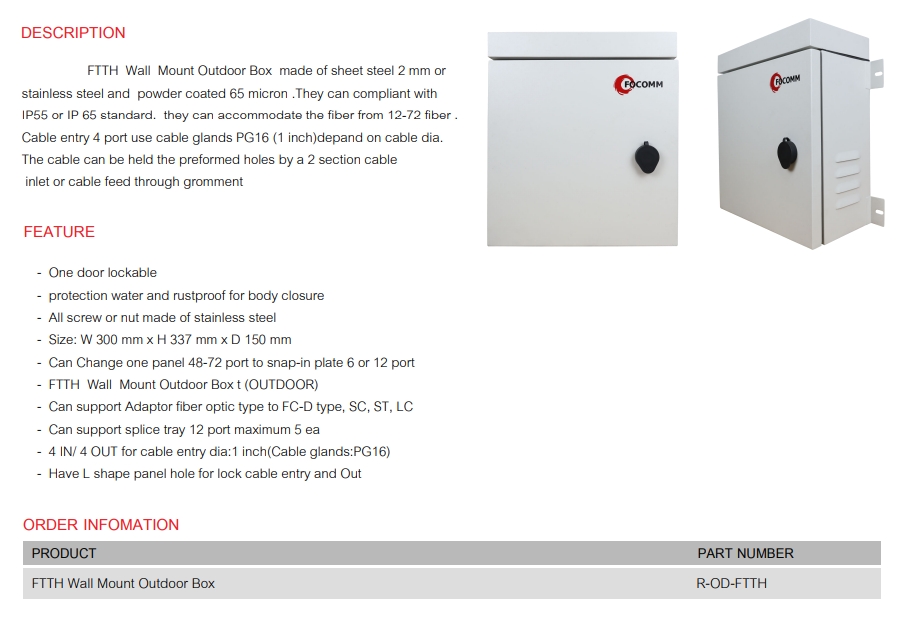

DESCRIPTION

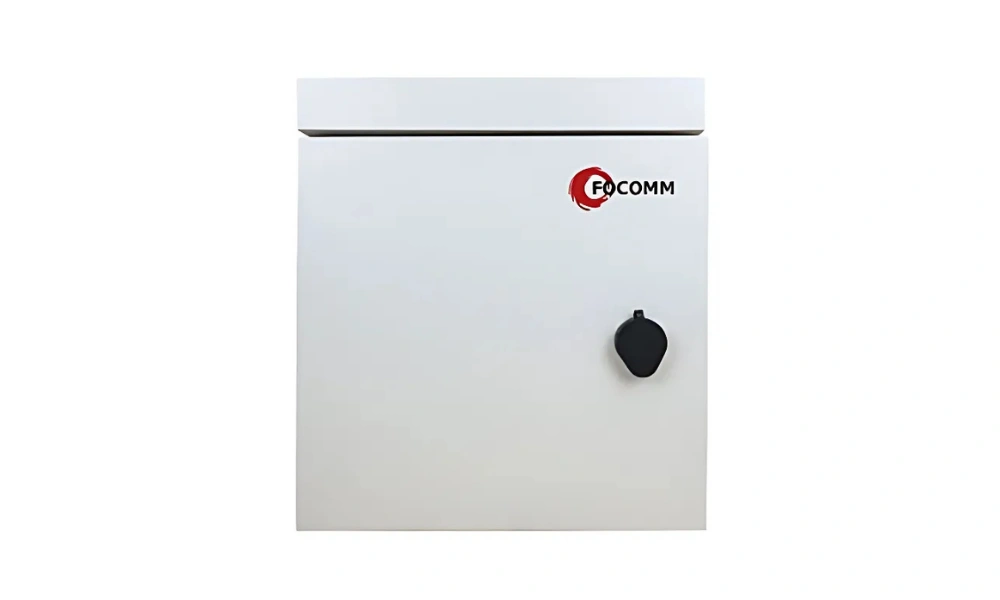

FTTH Wall Mount Outdoor Box made of sheet steel 2 mm or
stainless steel and powder coated 65 micron . They can compliant with
IP55 or IP 65 standard. they can accommodate the fiber from 12-72 fiber .
Cable entry 4 port use cable glands PG16 (1 inch)depand on cable dia.
The cable can be held the preformed holes by a 2 section cable
inlet or cable feed through gromment
FEATURE
– One door lockable
– protection water and rustproof for body closure
– All screw or nut made of stainless steel
– Size: W 300 mm x H 337 mm x D 150 mm
– Can Change one panel 48-72 port to snap-in plate 6 or 12 port
– FTTH Wall Mount Outdoor Box t (OUTDOOR)
– Can support Adaptor fiber optic type to FC-D type, SC, ST, LC
– Can support splice tray 12 port maximum 5 ea
– 4 IN/ 4 OUT for cable entry dia:1 inch(Cable glands:PG16)
– Have L shape panel hole for lock cable entry and Out
