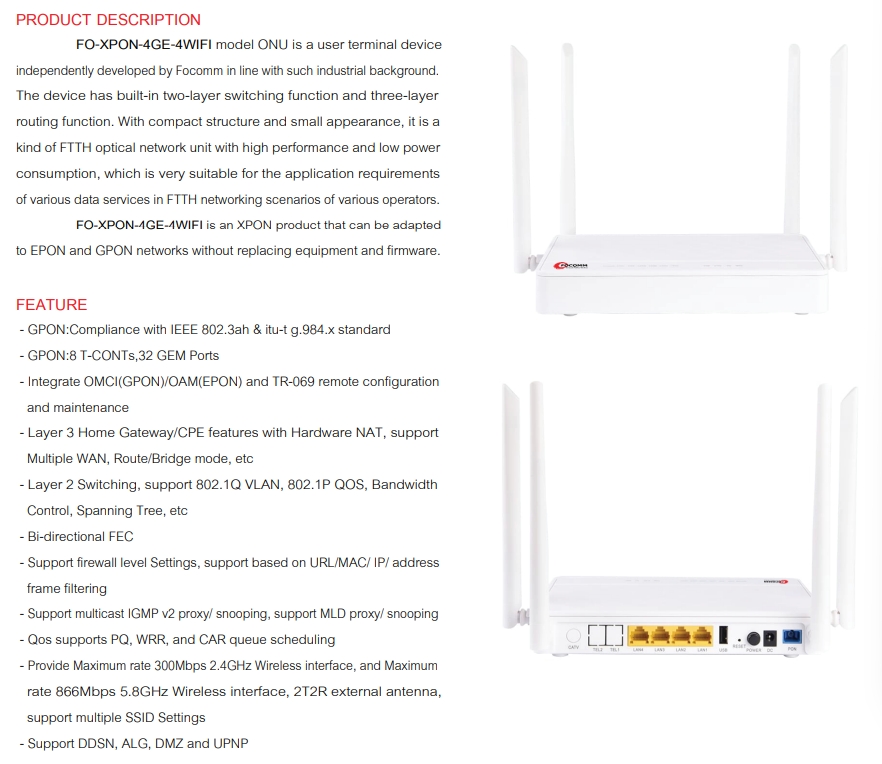

PRODUCT DESCRIPTION
FO-XPON-4GE-4WIFI model ONU is a user terminal device
independently developed by Focomm in line with such industrial background.
The device has built-in two-layer switching function and three-layer
routing function. With compact structure and small appearance, it is a
kind of FTTH optical network unit with high performance and low power
consumption, which is very suitable for the application requirements
of various data services in FTTH networking scenarios of various operators.
FO-XPON-1GE-1WIFI is an XPON product that can be adapted
to EPON and GPON networks without replacing equipment and firmware.
FEATURE
– GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
– GPON:8 T-CONTs,32 GEM Ports
– Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration
and maintenance
– Layer 3 Home Gateway/CPE features with Hardware NAT, support
Multiple WAN, Route/Bridge mode, etc
– Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth
Control, Spanning Tree, etc
– Bi-directional FEC
– Support firewall level Settings, support based on URL/MAC/ IP/ address
frame filtering
-support multicast Imp v2 proxy/ snooping, support MLD proxy/ snooping
– Qos supports PQ, WRR, and CAR queue scheduling
– Provide Maximum rate 300Mbps 2.4GHz Wireless interface, and Maximum
rate 866Mbps 5.8GHz Wireless interface, 2T2R external antenna,
support multiple SSID Settings
– Support DDSN, ALG, DMZ and UPNP
