PRODUCT DESCRIPTION

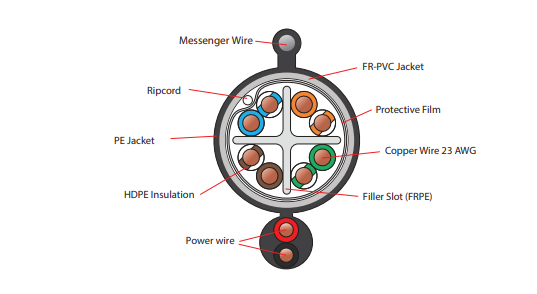

High-Performance Data Cable. Outdoor UV Rated Jacket. Self-supporting.
4 twisted-Pair cable, Using solid bare copper conductor 23 AWG,
insulated with HDPE Jacket
APPLICATION
1000BASE-T (IEEE802.3ab Gigabit Etheret), 10/100/1000 Mbps Standard UTP 6E,
100BASE-TX(IEEE802.3 ju/ab Fast Ethernet), 10BASE-T(IEEE802.3 Ethernet)
52/155/622 Mbps and 1.2Gbps ATM, 2.5G/5G Base-T(IEEE802.3bz),
10GBASE-T(IEEE802.3an 10Giqabit Ethemet. 55m),POE.POE+ (IEEE802.3af,
IEEE802.3at) TP-PMD, 100 Mbps TPDDI, ISDN, VOIP, Analog & Digital Voice,
Digital & Analog Video, 10 BASE-T,Broadband video, Digital & Analog For data,
video& audio application, 4/16Mbps Token Ring, HD BaseT 2.0 standard, Baseband, Broadband.
STANDARD
– ANSI/TIA-568-C.2 Category 6, ANSI/TIA-568.2-D,
– ISO/IEC 11801:2002 Class E, ISO/IEC 11801:2017 Class E,
ISO/EC11801:2017,1EC61156-5, ISO/IEC 118012017
– EN 50173-1 Category 6, EN 50288-6-1
– ICEA S-102-700 Category 6, IEC 60332-1
– NEMA WC 66,, ASTM, D4566-98,
– UL/CSA Listed CM,CMR,CMP and LSZH, ETL and 3P Verify to
TIA-568-C.2 CAT6
– UL444 , NEC800,RoHS Complian.
TEMPERATURE
Installation – 40 ‘C to 75 “C
Operating – 40 ‘C to 75 C
Storage – 40 C to 80 c
Rating Temp Voltage 75 ‘C, 300Volts
