OVERVIEW

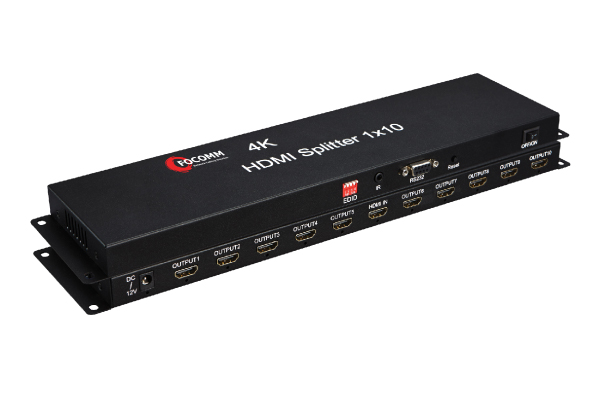

The 1×10 HDMI Splitter uses a single HDMI source,accessing
to ten HDMI sinks.It allows one HDMI device to be split easily to ten
HDMI compatible monitors or projectors. In addition, it can be placed
at the end of a long HDMI cable to regenerate the HDMI signal.
The resolution of this HDMI splitter can be up to 3840×2160/30Hz.
This splitter supports EDID management function, comes with ten kinds
of EDID mode, the users can choose according to their own needs.

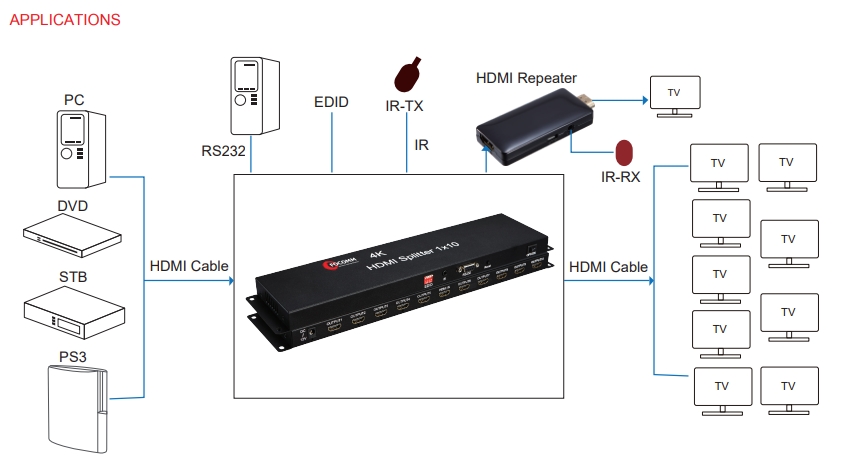

In addition, this product is also built-in IR extension function, can work
with our HDMI repeater which has IR-RX receiving the IR command to
control the source.
FEATURE
– Support HDCP 1.4
– Support 3D video format
– Support CEC (only output 1)
– Support high resolution up to 3840×2160/30Hz
– Support one single HDMI source accessing to multiple HDMI sinks, the source can
be DVD player, AN receiver, set top box and etc.
– Built-in IR extension function ( via the IR-RX of HDMI repeater to control the HDMI sources)
– Support serial port online upgrade
– Support EDID managemento
