19” HEAVY WALL RACK OUTDOOR IP 55
19” HEAVY WALL RACK OUTDOOR IP 55
![Heavy-Wall-Rack-Outdoor-6U,-9U,-12U](https://www.focomm-cabling.com/wp-content/uploads/2022/07/Heavy-Wall-Rack-Outdoor-6U-9U-12U.jpg)

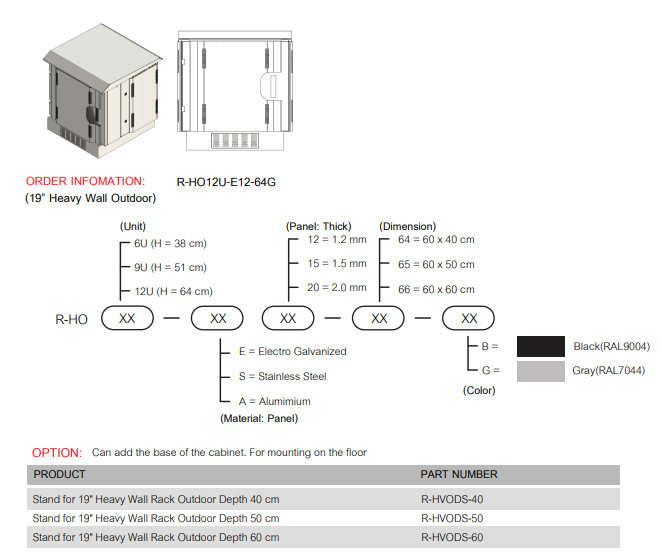

ORDER INFOMATION
FEATURE
ㆍ19″ Wall Rack type for outdoor, suitable for Network Equipment 19″ standard or
FDU, Patch Panel and suitable for CCTV system.
ㆍ The cabinet compliant with IP55 (Dust and Water protection)
* Roof rack can be mounted fan 4 ” has two bullt-In cabinets can be cooled well.
ㆍ Designed of two layer, The front and side panel have a sun shield layer for
outdoor Harsh Environment installation.
ㆍStructure Produced from Electro-Galvanized Sheet steel with thickness of
1.2mm., Light weight and completed rust proof.
* Front door Designed of two layers, provide build in Push Handle Lock.
Ventilation by roofer at front door. Open through 180 degrees.
ㆍ Side Panel (Two doors) Designed of two layers with two security lock for safety.
Water proof, dust filter and ventilation by roofer at side panel.
Open through 120 degrees.
* Back Side Supporting by four steel support bar with thickness of 2.0mm.
ㆍ Color The Special dark gray for outdoor color by electrostatic powder coating
paint., Scratch resistance and rust protection.
ㆍ Ground connection cable between the cabinet and the lid of the cabinet
