FEATURE
– Support for multi-gigabit data rates up to 10.5Gbps
– Data rates backward compatible to 1Gbps
– Hot-pluggable SFP 20PIN footprint
– 1/0 Connector designed for high speed differential
signal applications
– Improved Pluggable Form Factor(IPF) compliant for
enhanced EMI/EMC performance
– Compatible to SFP+ MSA
– Temperature Range: 0~ 70 *C
– Comply with RoHS
APPLICATIONS
– High capacity 1/0 in Storage Area Networks, Network
Attached Storage, and Storage Servers
– Switched fabric 1/0 such as ultra high bandwidth
switches and routers
– Data center cabling infrastructure
– High density connections between networking
equipment

OVERVIEW

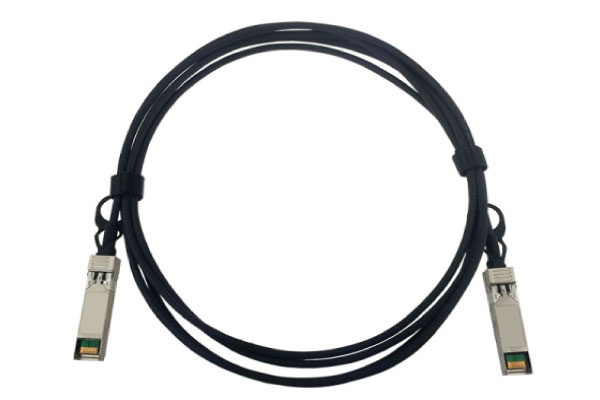

The SFP+ passive cable assemblies are high performance, cost effective 1/O solutions for
10G Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware
manufactures to achieve high port density, configurability and utilization at a very low cast
and reduced power budget. The high speed cable assemblies meet and exceed Gigabit
Ethernet and Fiber Channel industry standard requirements for performance and reliability.
