PRODUCT DESCRIPTION
HDMI uses infrared high-definition video signals, and will use CAT5E,
CAT6 UTP cable for high-definition video transmission,video resolution
up to 1080P / 60HZ, transmission distance of 150 meters; through the
LAN using network switches or repeaters, you will be able to expand

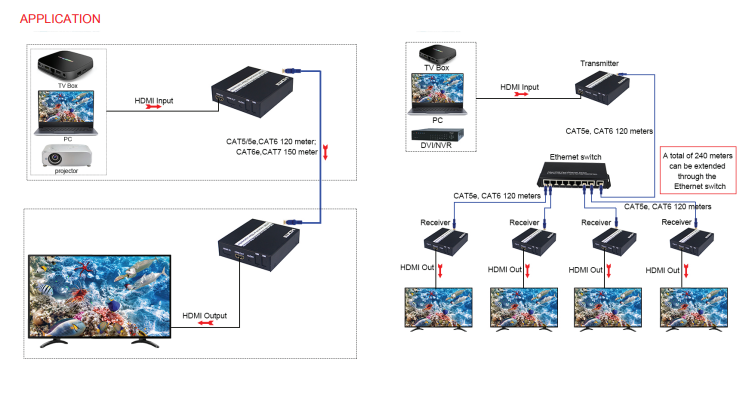

HDMI unlimited signal. It allows you to connect 1 PCS Transmitter (TX)
to multiple PCS Receivers (RX) (theoretically up to 253). By plugging
the transmitter (TX) into the Ethernet switch Uplink port and using other
Ethernet ports, you will be able to connect multiple receivers (RX) to multiple
TVs, so now you have an extender that can also be used as a splitter! Widely
used in homes and stores, showcase HDTV, HDTV, DVD and projector factories,
information release, conference rooms, school and corporate training.
HOMI OUT

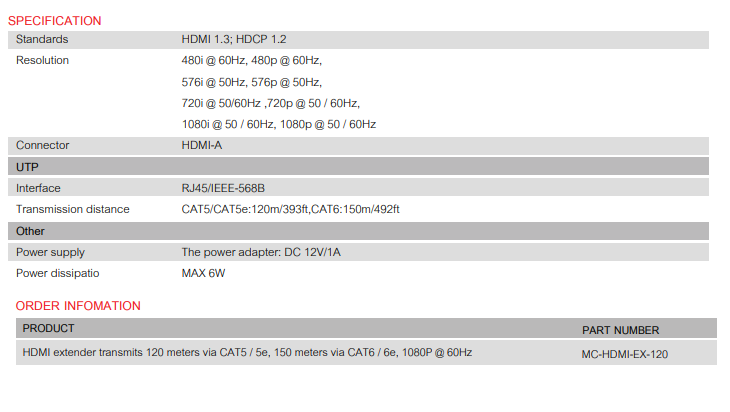

FEATURE
-Long range transmission:up to 150m/492tt over a single CAT6e cable.
-By adding an Ethernet switch, it can be transmitted over the LAN network 150M for a longer period of time.
-Support one transmitter to multiple receivers.
-Video resolution: Up to1920x1080P@60Hz.
-Video standard:compliance with HDMI 1.3 and HDCP 1.2 standard.
-Transmitter interface: HDMI input RJ45 port.
-Receiver interface: HDMI output RJ45 port.
